Description

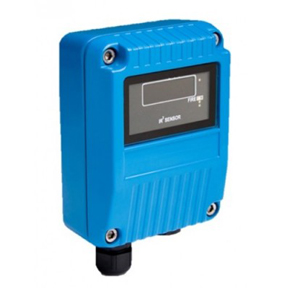

UV / IR² flame detector (combined: ultraviolet and double infrared) Certified EN54-10. 90 degree detection cone and sensing distance up to 45 meters Consists of selectable outputs: Dry contact or 4-20 mA output Programmable sensitivity Built-in filters and microprocessor analysis for false alarm suppression Infrared spectral response from 1 to 2.7 µm and ultraviolet from 185 to 260 nm Power supply 14 – 30 V. Consumption: 28 mA Housing with IP65 degree of zinc alloy Dimensions: 142 x 108 x 82 mm.
